Plumbing van wrap design ideas: 8 layouts built for the call that can't wait

People call a plumber in a hurry. A burst pipe or a backed-up drain does not wait for a web search, and the van parked two doors down is the ad that gets the call. So a plumbing wrap has one job above all others: make the phone number easy to read and easy to remember.

This guide shows 8 layouts made with our free generator, how to pick the one service line that sells, the license number rules in Texas and California, and where pipe racks and ladders cover your lettering. Every company below is fictional. To try these layouts with your own name, open the free plumbing van wrap ideas tool.

Pick one message before you pick a layout

Most plumbing shops sell one of three things. Your wrap should lead with the one you want more of.

• Emergency service. Lead with "24/7" and a phone number in your brightest color. Put the same number on the rear doors.
• Water heaters. A water heater swap is a big ticket job, and people search for it by name. Say "water heaters" in the tagline.
• Drain and sewer work. Words like "rooter," "drain cleaning," and "camera inspection" tell people you own the right gear.

Pick one for the tagline. Put the rest on your website, not the van.

8 plumbing van layouts

Each image is a free watermarked WrapMockup preview. The lettering is drawn from typed text, so the name and number come out spelled right.

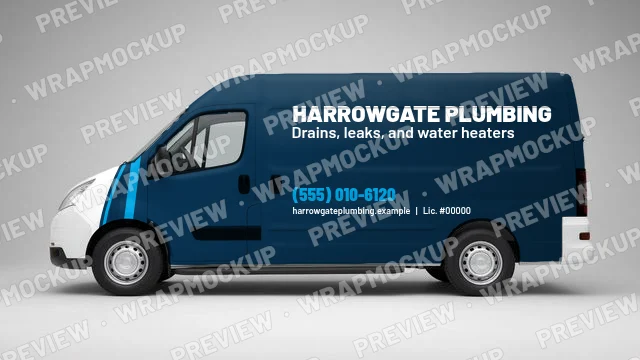

1. Full color: navy van with a blue accent

A full navy wrap with white text reads at a distance and hides road spray. The light blue accent says "water" without a drip graphic. It suits a shop with three or more vans that wants the fleet to look the same in every driveway.

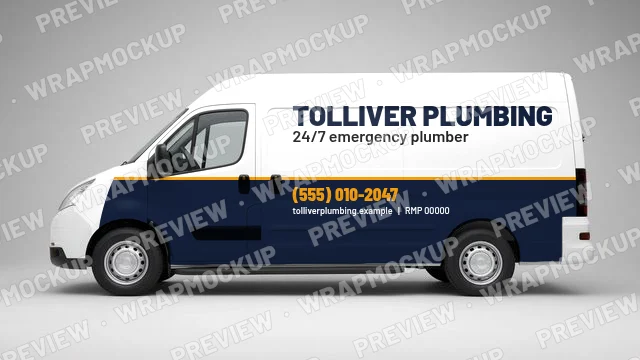

2. Two-tone for a 24/7 shop

White on top, navy below, and the phone number in yellow on the dark half. Yellow on navy is the strongest contrast on this page. Use it when "24/7 emergency plumber" is the whole pitch. The license line in this one shows the Texas "RMP" format (see the rules below).

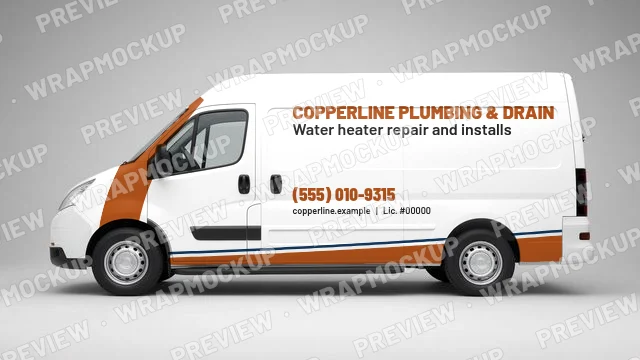

3. Swoosh in copper for a water heater shop

Most plumbers in town pick blue. Copper stands apart and ties to the pipe itself. Keep the name in a dark color on the white part of the van so the swoosh doesn't swallow it.

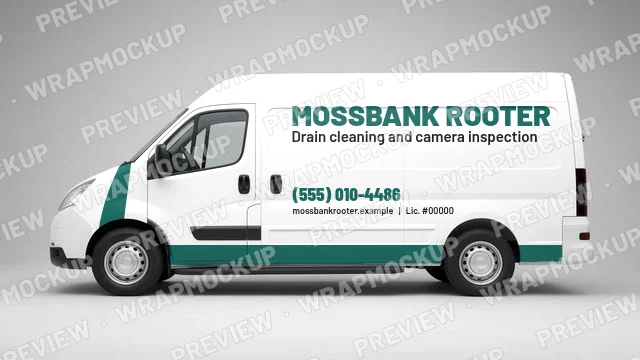

4. Color block for a drain and rooter brand

A solid block over the cab gives a drain shop a clean, modern look. The tagline names the work: drain cleaning and camera inspection. Teal is less common than blue, and it hides grime on the lower front.

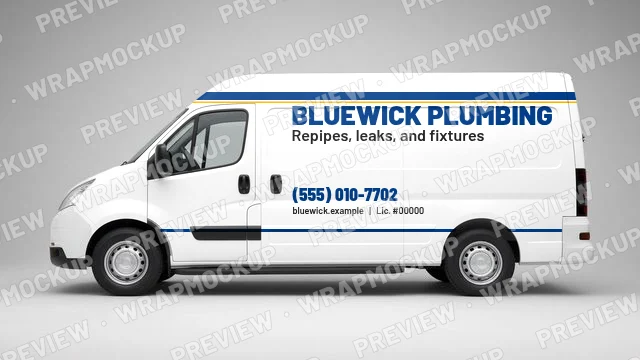

5. Stripe: the low cost way to brand a white van

Two stripes and cut lettering on a factory white van. Less vinyl means a lower bill, and a white van is easy to resell. The stripes at the roof line stay visible under a pipe rack.

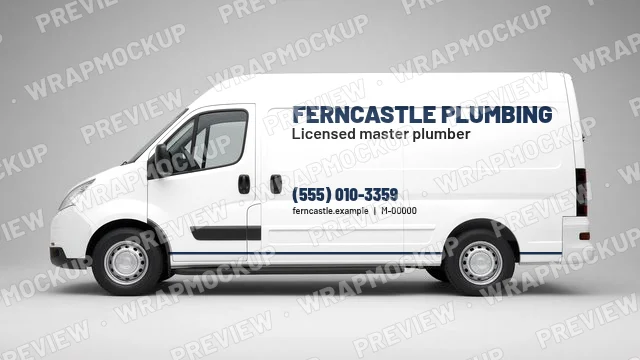

6. Minimal lettering for a new shop

Name, "Licensed master plumber," phone, website, and license number. No graphics. It is the first step for a one-van shop, and you can add a stripe or a block in a year or two with the same type and colors.

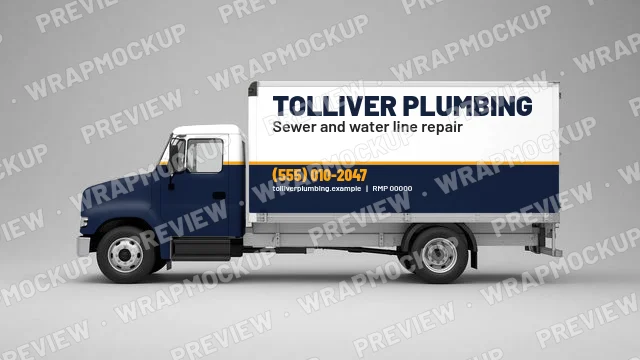

7. Box truck for sewer and water line work

A shop that runs excavation or jetting gear on a box truck has a big flat panel to work with. Match it to the vans: same colors, same phone, same tagline style. See more box truck wrap ideas.

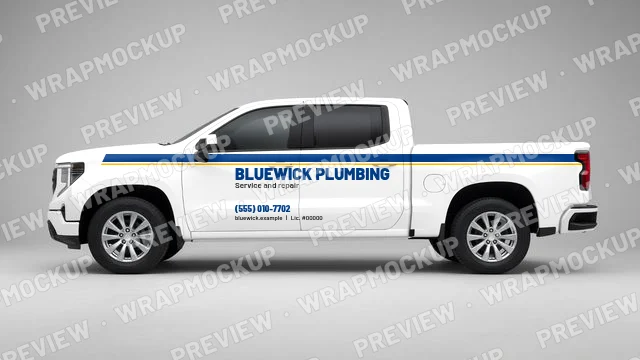

8. Pickup that matches the vans

The owner's or estimator's pickup has two doors of space. Carry the van stripe across them and keep the phone on the front door, below the window.

Pipe racks, ladders, and rear doors

Plumbing vans carry gear on the outside. Plan the wrap around it.

• Roof racks and pipe tubes cover the top edge of the side. Keep the name below the rack line.
• Rear doors face the cars stopped behind you. Put the phone and website on them in big type. Skip the name if space is tight. The sides of the van carry it.
• Side door handles and the fuel door cut through lettering. Move the phone so no digit lands on a seam.
• Rocker panels collect road grime. Keep text above the wheel well tops.

License numbers on plumbing vans: two state examples

Rules differ by state and city. Two large states publish clear ones.

Texas. Under rule 22 TAC §367.10(a), the responsible master plumber and the owner of a plumbing company "shall ensure that the RMP's license number and the company name are displayed on both sides of all service vehicles owned or operated by the company." The rule says the number "must be preceded by the letters 'M', 'MPL', or 'RMP'," and the letters and numbers "must be placed on the body of the vehicle and must be of a contrasting color, and at least two inches in height." Two details matter for the design. The number goes on the body, so a window decal does not count. And the prefix is part of the line, so set it as "RMP 12345" or "M-12345," not the bare number.

California. A 2020 bulletin from the Contractors State License Board says that under Business and Professions Code §7029.6, "your business name and contractor license number should be clearly visible on your commercially registered vehicle in print type of at least 72-point font, or three-quarters of an inch in height and width." The board lists plumbing as its own license class (C-36 Plumbing Contractor), so the rule covers a licensed plumber's van.

For other states, check your plumbing board or contractor board before the wrap goes to print, and ask the shop to set the license line at the minimum size or larger.

Federal DOT marking. If a van or truck counts as a commercial motor vehicle under federal rules, 49 CFR 390.21 adds a carrier name and USDOT number on both sides, in letters that "contrast sharply in color with the background." Whether a vehicle counts depends on its weight rating and the trips you run. A box truck or a truck and trailer is the first place to check. Ask FMCSA or your state DOT.

Colors and type that work for plumbers

• Blue is safe, not special. It says water, and so does every other van on the road. Pair it with a bright second color like yellow, orange, or copper.
• Avoid brown and dark green as main colors. Both turn to black at dusk, and brown sends the wrong message for a drain company.
• Use one bold font for the name. Thin script fonts fall apart at 50 feet.
• Test small. Shrink the preview to the size of a phone screen thumbnail. If you can read the phone number at that size, it works on the street.

Make yours

1. Open the plumbing van wrap ideas page. A second set with a different sample company lives on the plumber cargo van page.
2. Type your business name, tagline, phone, website, and license line. Pick two colors and add a logo if you have one.
3. See 24 free watermarked previews: 6 styles on a van, a pickup, a box truck, and a 24x18 yard sign. No account needed. The previews render in your browser, so your logo stays on your device.
4. Take the layout you like to a local wrap shop as the starting point.

Clean files cost $9 for one vehicle concept plus its matching yard sign, or $29 for all 24 plus a brand sheet. These are concept proofs, not print files. Your wrap shop builds the print file for your exact van. To plan the budget, read how much a van wrap costs. For a leave-behind on every job, see the plumbing door hanger maker.

FAQ

What should a plumbing van wrap include? Business name, phone number, one service line such as "24/7 emergency plumber" or "Water heaters," your license number where your state requires it, and a short website. Put the phone on both sides and the rear doors.

Do plumbing vans need a license number on them? In some states, yes. Texas rule 22 TAC §367.10 requires the responsible master plumber's license number, with an M, MPL, or RMP prefix, and the company name on both sides of every service vehicle, in contrasting letters at least two inches high. California's licensing board says contractor vehicles with commercial registration need the business name and license number in at least 72-point type. Check your own state board.

What colors work best on a plumbing van? Blue says water, but most plumbers use it. Pair blue with a bright accent such as yellow or orange, or pick copper or teal to stand apart. High contrast between the text and the van matters more than the hue.

Can I see my plumbing van design before I pay a shop? Yes. The free plumbing van wrap ideas tool shows your name, phone, and colors in 6 styles on a van, a pickup, a box truck, and a yard sign.

Checked 2026-10-18. Prices and policies change. Confirm on the source before you buy.
